Connectivity / AiP Module

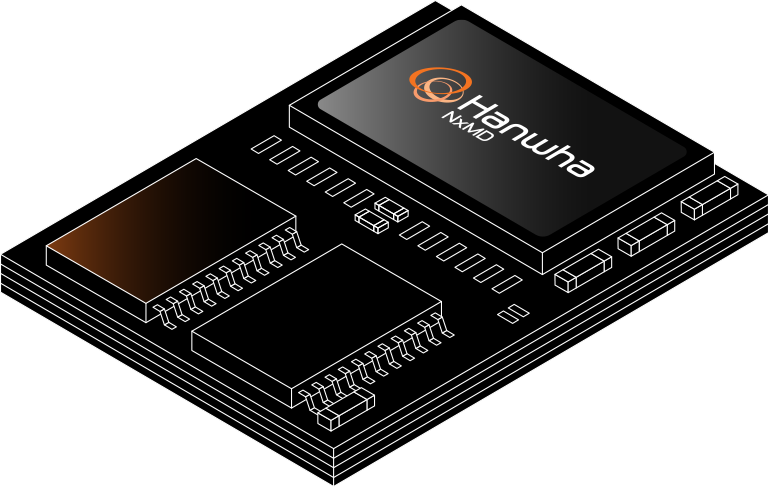

Connectivity Module

Near-field communication modules enable wireless internet and wireless connection between devices.
Mainly implemented in the 2.4GHz, 5GHz and 6GHz frequency bands, they are equipped with small and thin parts through small form factor packaging technology to provide high-density small form factor module solutions.

Applications: Smartphone, Tablet, Laptop, Home Appliances
General Features: IEEE 802.11 a/b/g/n/ac/ax Standard Compliant

Simulation & Analysis

Design optimized to achieve
high-performance
low-power capabilities

Discrete (CoB) Module 40%

Application of high-density
small form factor
packaging technology

Advance adoption of
new standard technology
to provide high-speed
wireless communication

Proven production
capacity with over 20 years
of R&D in WiFi and history of
mass production of
cutting-edge products

Strategic partnership
with IC companies

Stable SCM achieved
through internalizing
components supply

Line-up

Categories
CE / IT	Broadcom MP 11ac 2x2 RSDB / PCIe BT5.0 / UART	Broadcom MP 11ax 2x2 RSDB / PCIe BT5.0 / UART	Broadcom MP 11ax 2x2 RSDB / PCIe BT5.1 2x2 / UART	Broadcom Plan 11be 2x2 RSDB / PCIe BT5.3 2x2 / UART, Thread
		Synaptics Dev 11ax 2x2 / PCIe BT5.3 / UART	Synaptics MP 11ax 2x2 / PCIe BT5.3 / UART
			Synaptics Dev 11ax 1x1 / USB / SDIO BT5.3 / UART Thread / 802.15.4 (Zigbee)
			Synaptics Plan 11ax 2x2 RSDB / PCIe / USB2.0 BT5.3 / UART Thread / 802.15.4 (Zigbee)
	Qualcomm MP 11ac, 1x1 BT4.0	Qualcomm MP 11ax 2x2 / PCIe BT5.1 / UART / M.2 1216	Qualcomm Plan 11ax 2x2 / PCIe BT5.1 / UART / M.2 2230	Qualcomm Dev 11be 2x2 RSDB / PCIe BT5.4 2x2 / UART
Automotive	Infineon Dev Auto Grade 3 11ac, 2x2 / PCIe / SDIO / RSDB BT5.1 / UART	Infineon Plan Auto Grade 3 11ax RSDB. 3Antenna / PCIe BR5.4 / Dual BT / UART	Infineon Dev Auto Grade 3 11ax 2x2 PCIe / SDIO BT5.3 / UART	Infineon Plan Auto Grade 3 11be 2x2 PCIe / RSDB BT6.0 / UART
	Infineon Plan Auto Grade 3 11ac, 1x1 / PCIe / SDIO BT5.0 / UART
	Infineon MP Auto Grade 3 11ac, 1x1 / PCIe / SDIO

AiP (Antenna in Package)
Module

MmWave refers to the band of frequencies between 24GHz and 100GHz. MmWave allows broadband transmission and has various applications including satellite communications, mobile communications, radio navigation, earth exploration, and radio astronomy.
Hanwha NxMD provides a total solution for 5G mmWave modules, from the design of 5G mmWave antenna to the production and test of antenna modules (AiP: Antenna in Package).

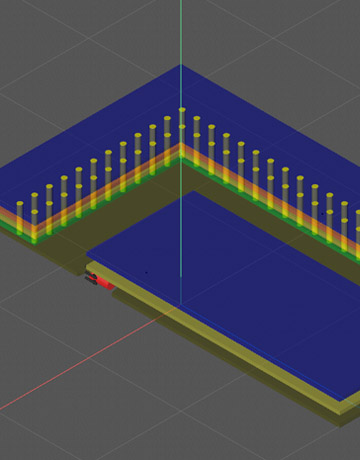

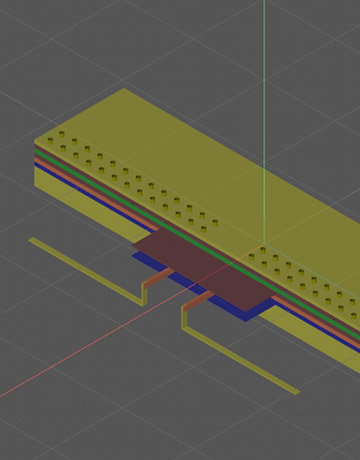

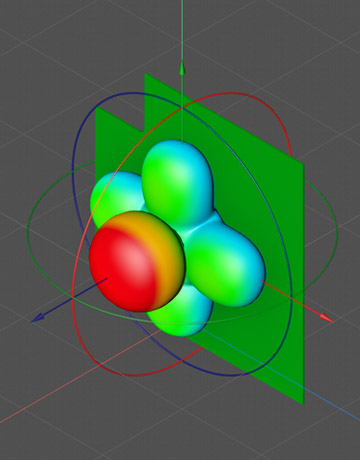

Design Optimization for high performance
capabilities achieved with antenna design,
simulation and analysis technology
